Cuby Aria 24V

Smart Thermostat for air conditioners

0. Contents

Cuby Aria 24v

Screw and anchor

Disassembly Accessory

For installation, you will need the following:

• Drill
• Smartphone with iOS or Android
• WiFi connection
• Phillips screwdriver
• Hammer

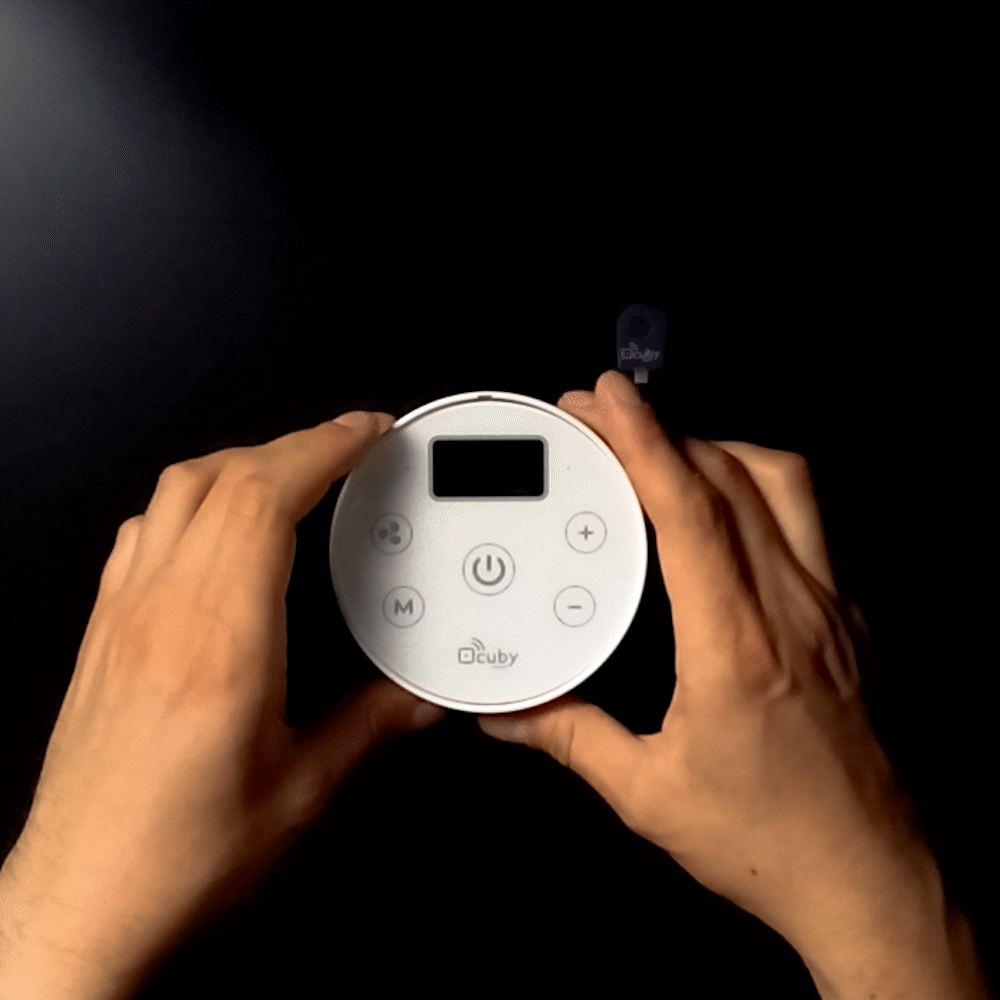

1. Remove the Glass Panel

1. Locate the slot on the edge of the glass as shown in the image.

2. Insert the disassembly tool into the slot and lever it upwards, carefully removing the glass panel.

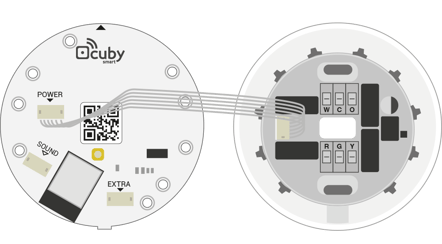

Back of the Glass Panel

When removing the glass panel, you will notice it remains connected to the base in the cabinet.

2. Installation

Choose the installation location carefully, ensuring it is in the same room as your air conditioner and no more than 6 meters away.

1. Position the Cuby Aria base on the wall where it will be installed, threading the power cables through the center, and mark the holes with a pencil.


2.
3. Using a drill and the correct bit (3/16 inch for the anchors provided), make the necessary holes for the screws, ensuring they are deep enough.


4. Insert the anchors into the drilled holes.


5. Screw the back cover of the Cuby Aria to the wall with the base arrow pointing upward, as shown in the image.

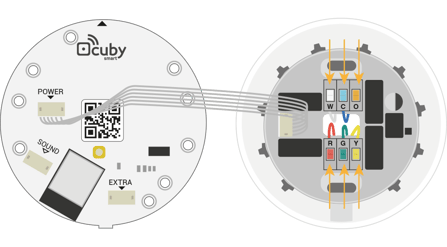

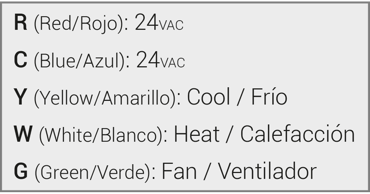

3. Connect Your Cuby Aria 24V

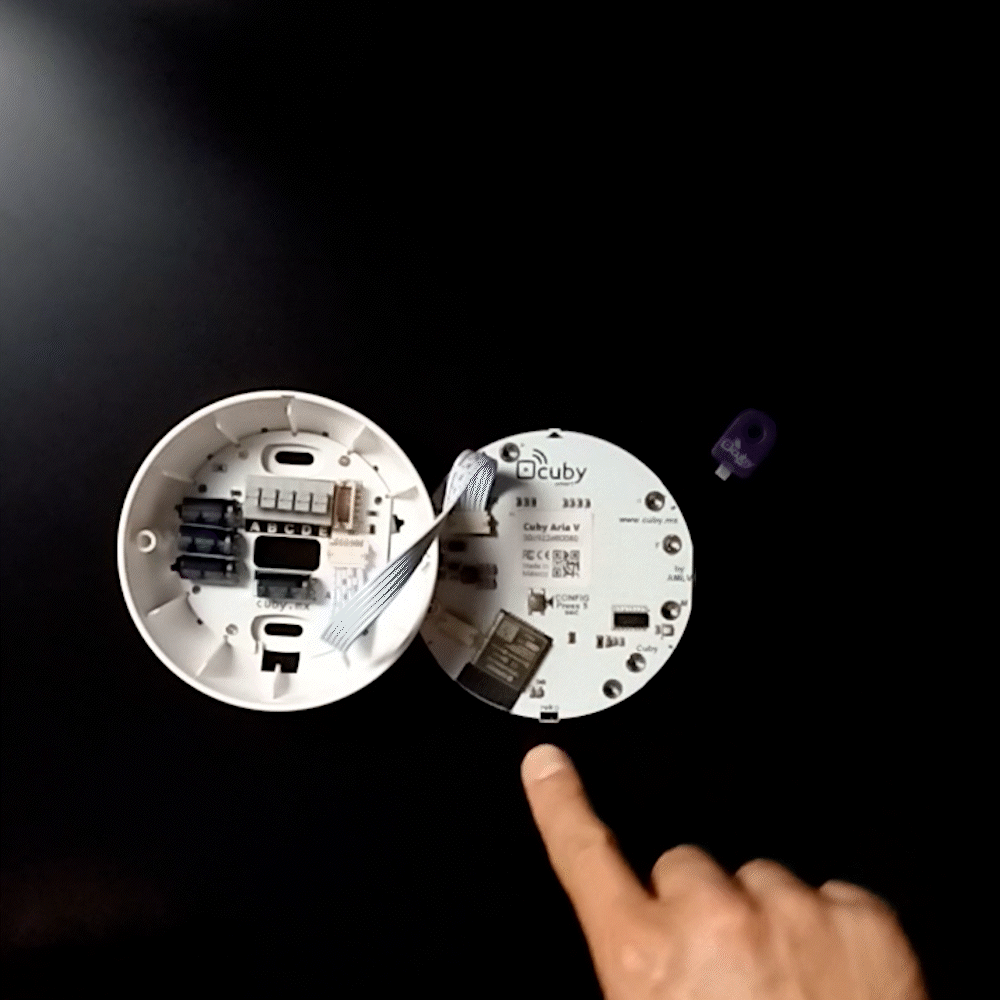

Once connected, reinsert the glass panel into the cabinet.

Locate the bottom edge of the glass panel as shown in the image.

First, insert the edge into the slot at the base of the Cuby Aria installed on the wall. (1)

Push the top part to fit it into the Aria base (2) until you hear a click. (3)

4. Add Your Cuby Aria 24V

1. Make sure your Cuby Aria is properly connected.
2. Open the Cuby App and select the 'Add Cuby' option.
3. Select the 'Add Cuby Aria' option and follow the steps in the app.

4. Follow the instructions in the app and wait for it to locate your Cuby Aria. The search should not take more than 1 minute. If the app cannot find the Aria, ensure that Bluetooth and location services are enabled on your phone.

   If, after several attempts, the app still cannot locate the Cuby Aria, restart your phone and try again.

5. Once your phone detects the Cuby Aria, you will be prompted to name it. Enter a name that identifies the location where the Aria will be installed.

6. Do not include the following words in the name, as they may cause issues when using virtual assistants like Alexa or Google Home:

   1. 'Air'
   2. 'Air Conditioner'
   3. 'Climate'
   Using the words 'Air' or 'Air Conditioner' can make virtual assistants misinterpret the command as a request for cooling mode or air conditioning mode, preventing the command from being executed correctly.
7. Wait for Cuby Aria to display the available networks.
   It may take up to 30 seconds for the list of networks to appear.
8. Select your WiFi network from the list that appears. Remember, you can also manually access it by entering the name and password.

9. Once you have selected the network you want your Cuby Aria to connect to, enter the password and press 'Next'.
10. Wait while your Cuby Aria connects to the WiFi network. This step should not take more than 1 minute.
11. Done! You have successfully added your Cuby Aria.



1. Remove the tempered glass panel.
2. On the back of the panel, locate the 'config' button.


3. In step 2/8, press the 'config' button for at least 4 seconds and proceed as usual.

5. Test

Ensure that when you press the buttons on the Cuby Aria, the A/C responds correctly.

6. Celsius/Fahrenheit Degrees

To set the temperature unit to Celsius, press and hold the button on the left side of the screen for 4 seconds. Similarly, to select Fahrenheit, press and hold the button on the right side.
